Infrared Control Valve

electronic IRC® for use with a urinal-flushing cistern, mains and/or battery powered

Price(s) From
£ 272.40
Price (incl. VAT)

Infrared Control Valve

electronic IRC® for use with a urinal-flushing cistern, mains and/or battery powered

£ 272.40
Price (incl. VAT)

Quantity

SKU IRC2
Total Cost £ 272.40
Description Motion-sensing infrared urinal flushing control valve complete with brass-bodied solenoid valve and flush mounting bracket for ceiling or cavity wall installations, battery or mains-powered, for cistern-flushing applications (IRC® is a registered trademark of Cistermiser Ltd)

Specs

Product Information

The IRC® valve automatically manages the supply of water to a urinal cistern. The unit employs motion-sensing infrared to control valve operation and reduce water consumption by over 80%. The PIR sensor detects movement and activates the solenoid valve, allowing water into a urinal cistern.

And now the best is even better. Incorporating the same proven and robust brass valve, new features include a stylish and compact body shape, an economy mode option to provide even greater water savings and a design which allows easy-to-use battery replacement.

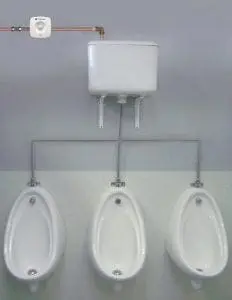

The solenoid assembly is plumbed in on the water supply to the urinal cistern. The connection to the infrared sensor is made either by directly mounting the sensor module on to the solenoid or by using the ‘floating socket’ supplied for a remote mounting.  If mounted remotely, the sensor module may be:

  • Surface mounted.
  • Recessed into a suspended ceiling using the cutting template and mounting bracket, supplied with the IRC® as standard.

If the sensor detects no occupancy in 12 hours it will automatically open the valve for 30 minutes to allow one flush of the cistern to rinse the urinals and pipework.

The sequence is designed to maximise battery life, giving approximately 3 years’ life from one good quality set of batteries.

The flow rate of the water into the cistern is adjustable to maximise water economy. Generally this should be set so that the cistern flushes once every time the valve is opened i.e. every 30 minutes during occupation.

IRC® is a registered trademark of Cistermiser Ltd.

PIR Sensor Unit
Contained within a white moulded ABS case designed to fit directly on to the solenoid valve assembly for surface mounting
Front access
To the battery compartment, via the removable fascia
Rear access
To terminals for a 230V mains power supply to the integral transformer and the 6V DC output to the solenoid
Dimensions
85mm W x 85mm H x 68mm D including the sensor lens
Range
125⁰ infrared detection, spanning 9.2 metres at floor level with a maximum height detection range of 2.5 metres
Voltage
6V DC nominal 54μA, peak 750mA, for 50ms
Mains supply
Nominal 230V +/- 10% AC 50hz 20mA
Battery supply
6V from 4 x 1.5V alkaline AA (LR6) batteries
Solenoid valve
6V latching valve, UK WRAS approved. One valve per sensor unit
Water supply
0.1 to 6 bar pressure range. Integral, slow-fill flow regulator. If supply pressure is above 6 bar, fit a pressure reducing valve
Size
1/2" BSP (15mm)
Product Features
The ideal valve for control of cistern-fed urinals
Normal or Economy Mode water-saving options
Ensures compliance with the Water Regulations
Battery or mains powered (no external transformer required) - IRC® can use batteries as back-up to mains supply if required
Pipe, wall or ceiling mounted sensor - surface mounted or recessed
Can be concealed to reduce the risk of vandalism
Visible LED status indicator and low battery alert
On DEFRA's ECA Water Technology List; purchase and installation are tax deductible
IRC® is a registered trademark of Cistermiser Ltd

The IRC® urinal flush control consists of a solenoid valve and the infrared sensor module.

When the IRC® detects movement in the washroom, a pulse from the sensor opens the normally-closed solenoid valve and water flows to the cistern. The LED flashes to show the valve is open.

In Normal mode, the IRC® operates with a 30-minute cycle. This means that the cistern will flush a maximum of 2 times per hour.

In Economy mode, an additional delay of 15 minutes is provided before the Normal mode operating cycle is activated, to save even more water. This means that the cistern will flush a maximum of 2 times in 90 minutes.

IRC® is a registered trademark of Cistermiser Ltd.

Here is a selection of documents, designed to ease specification and installation:

Sales Brochure

Infrared Control (IRC®) Valve

Download PDF
Sales Leaflet

Infrared Control (IRC®) Valve

Download PDF
Installation Guide

Infrared Control (IRC®) Valve

Download PDF
Specification Wordings

Cistermiser and Keraflo Product Ranges

Download PDF
Specification Catalogue

Cistermiser

Download PDF

Here is video content illustrating the technical application of this product:

Cistermiser IRC Installation

Infrared Urinal Flush Control (IRC®)

Cistermiser IRC and STD valves

Infrared Urinal Flush Control (IRC®)

Cistermiser New IRC- Installation with James Lawrence of Plumberparts

Infrared Urinal Flush Control (IRC®)

BIM objects are available for download from the NBS National BIM Library, in both Revit and IFC formats.

Click here to view Cistermiser products on the National BIM Library

Warranty Cover

Parts only warranty (no labour) for equipment purchased in the United Kingdom, Ireland, Isle of Man and the Channel Islands. Components of the unit which are proven to be faulty or defective in manufacture will be exchanged or repaired.

Warranty Period

1 Year from Date of Manufacture

Extended Warranty Period (available on Registration)

3 Years from Date of Installation



Extended Warranty Terms

To register and qualify for Extended Warranty cover, the Cistermiser product must be correctly installed with the Commissioning Checklist fully completed as itemised in the Installation Guide (included with the product), to demonstrate compliance with the product installation instructions.

Each Commissioning Checklist activity should be dated and additional warranty details provided to enable registration: product serial number, installation date, installation site address and the installer’s name and contact details.

Extended Warranty can be registered online (via the Warranty section of this website) or by completing and returning the Commissioning Checklist from the Installation Guide (included with the product) to this address: Cistermiser Ltd, Unit 1, Woodley Park Estate, 59-69 Reading Road, Woodley, Berkshire RG5 3AN.

Product FAQs

We’re here to Help!

Q
The installation is complete but the Test Mode does not work. What can I do?
A

Things to check:

  • Is there power?

Solution: Ensure the unit is powered. Change the batteries if battery powered; ensure mains electrical power is functioning if mains powered.

  • Is there a fault with the power supply?

Solution: Disconnect one source of power and check by pushing the test button. When the sensor is mounted directly on the valve it should be battery powered ONLY. Also check the remote wiring if the sensor is remote from valve.

Q
The installation is complete but there doesn’t appear to be any water passing the valve. How can I correct this?
A

Things to check:

  • Water supply.

Solution: Ensure the water supply is turned on and is reaching the valve. The valve is suitable for water pressures of 0.1 to 6 bar.



  • Is there a blockage on the outlet pipe?

Solution: If a petcock or bibtap has been fitted, make sure it is removed or fully open. Our installation instructions state that there should be no restriction after the valve.



  • Is the mesh filter blocked on the inlet?

Solution: Remove the valve so you can check that the filter on the inlet side of the valve is completely clear.



  • Is the flow regulator open?

Solution: Make sure the flow regulator is completely opened and when the valve is letting water run, turn down to the required flow rate.



  • Is the water pressure high (above 6 bar)?

Solution: Fit a pressure reducing valve before the IRC valve.



  • Is the power working?

Solution: Check that the unit is powered. Change the batteries if it is battery powered. If mains powered, ensure that the mains electrical power is functioning.



  • Has economy mode been activated?

Solution: The unit may have been put into economy mode. See Section 7 of the Installation Guide to reverse this (available to view in the Downloads area of this website).

Q
The installation is finished but water is continuously flowing through the valve. What should I do?
A

Things to check:

  • Activation process

Solution: Once activated the valve will remain open for a period of 30 minutes and will reactivate if someone comes within the range of the sensor in the last five minutes of the 30 minute period.   So the valve will appear to work continuously as long as someone is in the washroom.

  • Is the power working?

Solution: The power may have failed while the valve is in the ‘open’ position. Check the unit is powered. Change the batteries if it is battery powered. If mains powered, check that the mains electrical power is functioning. Go through a test cycle when power is restored.

  • Valve may not be fitted correctly.

Solution: Check the valve and ensure that the arrow on the brass body is pointing in the direction of water flow.

Q
It looks like the valve is remaining shut when the room is occupied but open at other times. What should I do?
A

Things to check:

  • Remote wiring may be incorrect

Solution: If the valve and sensor have been set up remotely, ensure the remote wiring is wired as follows: ‘1’ to ‘1’ and ‘2’ to ‘2’. If you find the wiring is connected ‘1’ to ‘2’ and ‘2’ to ‘1’ then the valve is working in reverse.

Q
I think the water flow rate through the valve seems to be very slow. How can I increase the flow?
A

Things to check:

  • Flow Regulation

Solution: Increase the flow rate by turning the flow regulator anti-clockwise until you reach your desired flow rate; ideally it should fill the cistern once per activation and then flush. See Step 6 ‘Commissioning’ in the Installation Guide (available to view in the Downloads area of this website).



  • The mesh filter may be blocked

Solution: Check to ensure that the filter on the inlet side of the valve is clear.

Q
I think the water flow rate through the valve seems to be very fast and the cistern is flushing too frequently. How can I decrease the flow?
A

Things to check:

  • Flow Regulation

Solution: Decrease the flow rate by turning the flow regulator clockwise until you reach your desired flow rate. Ideally it should fill the cistern once per activation (i.e. every 30 minutes) and then flush. See Step 6 ‘Commissioning’ in the Installation Guide (available to view in the Downloads area of this website).

Q
I have just changed the batteries and there is no power to the unit. What should I do?
A

Things to check:

  • Battery orientation

Solution: Check the battery orientation. Ensure there is no excessive corrosion on the battery terminals. Use batteries that are a reputable brand.
